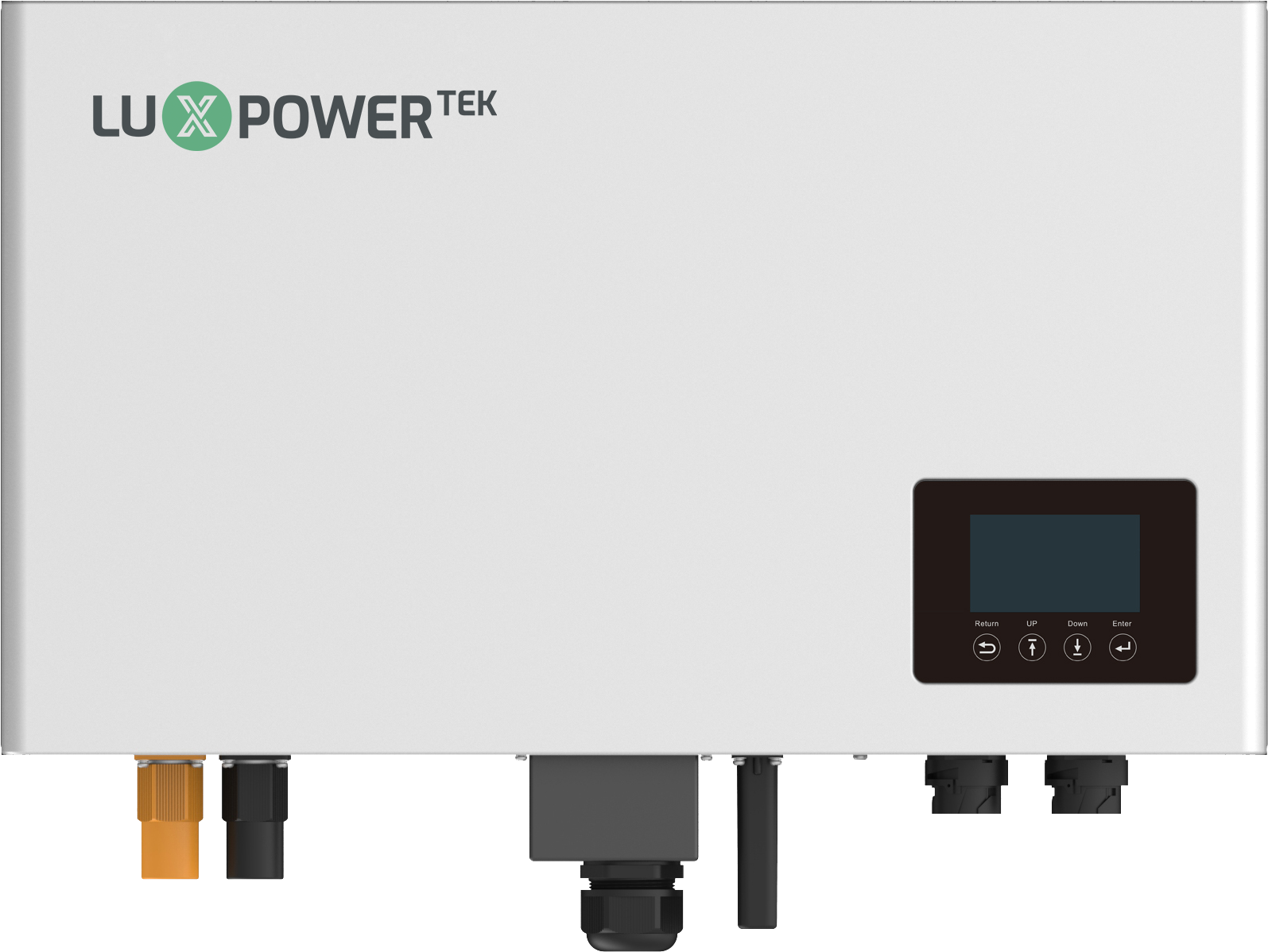

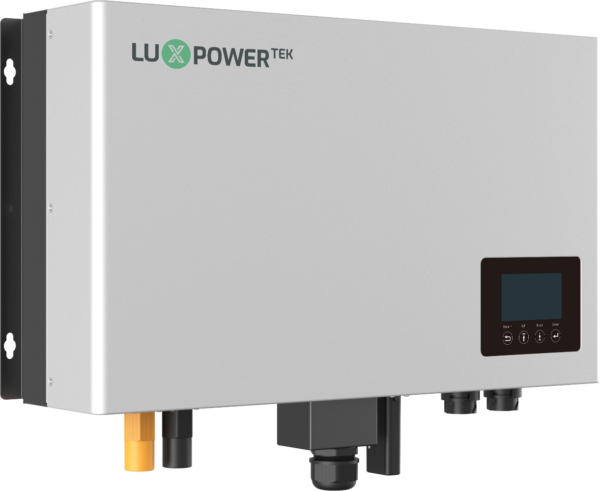

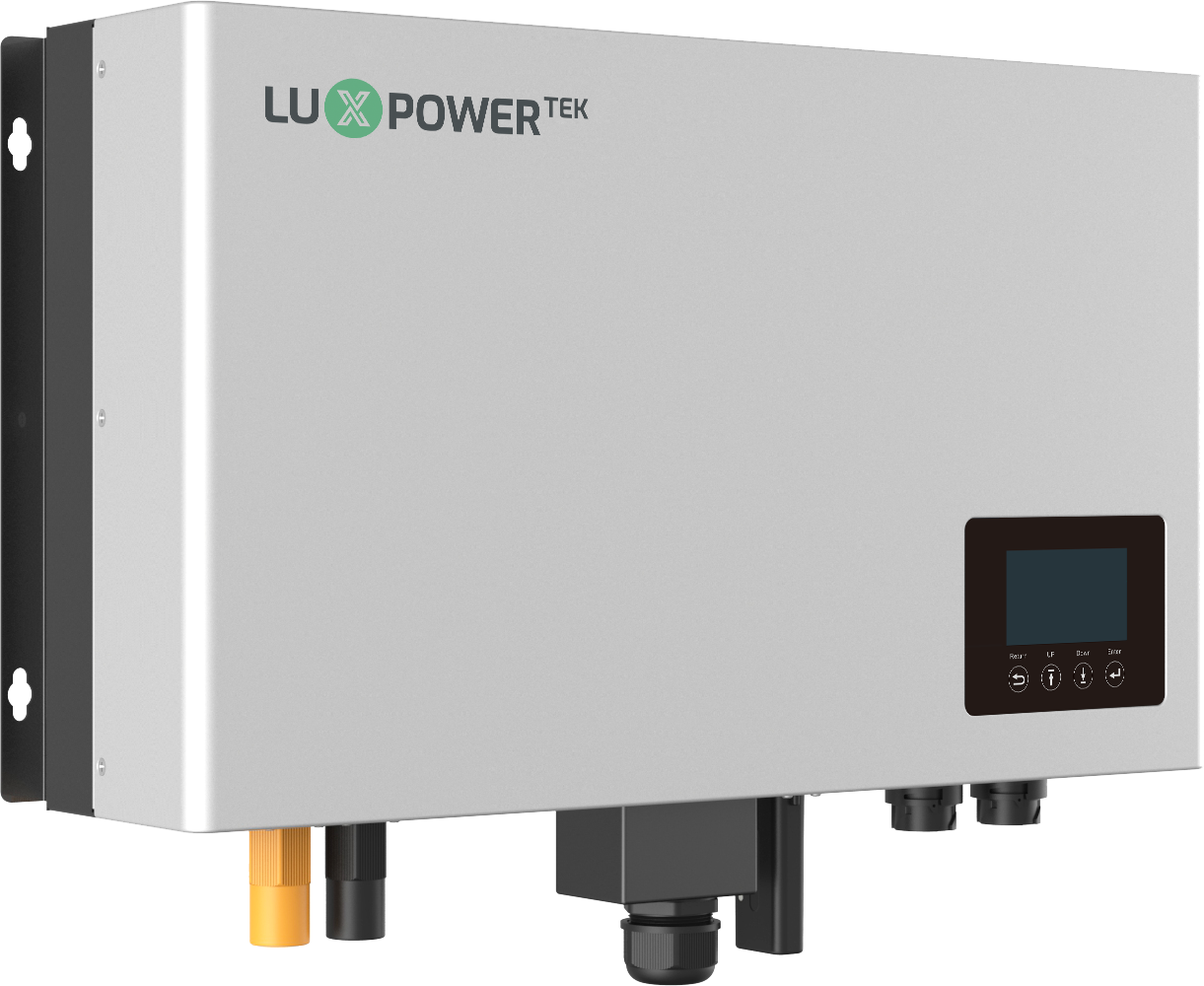

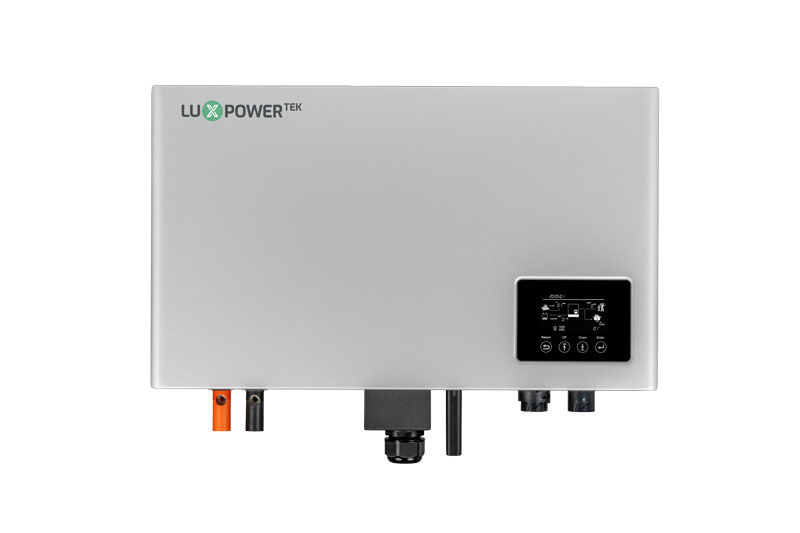

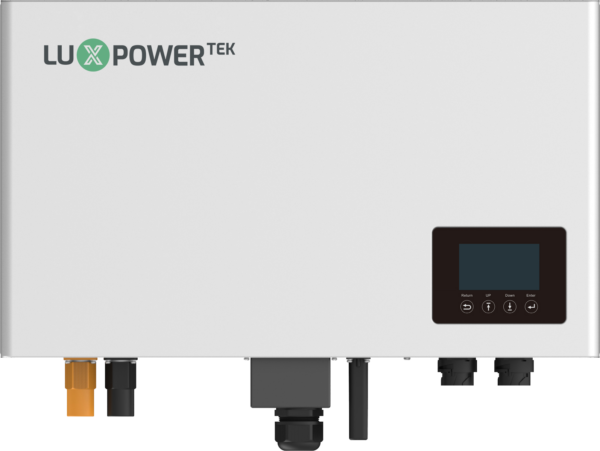

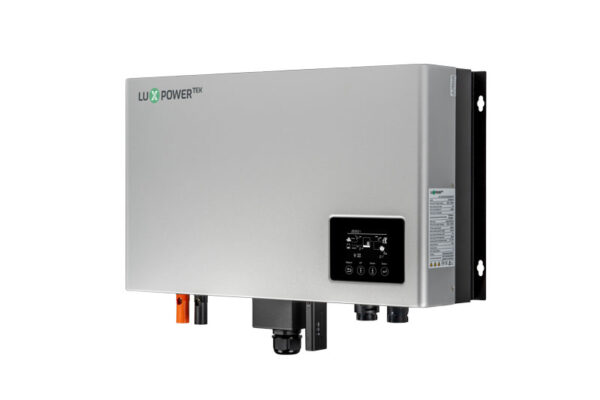

LuxPower ACS 3.6
Introduction
Luxpower’s ACS Inverter is a retrofit solution designed for transforming existing on-grid systems into efficient energy storage systems. This lightweight and compact inverter serve as the ideal choice for retrofitting and upgrading your current on-grid setup. While it cannot directly connect to PV panels, its primary purpose is to facilitate the transformation of your existing grid-tied system.
Key Features
- Retrofit any on-grid/micro-grid system to energy storage system
- Allows up to eight batteries connected
- Battery charging/discharging current: 70A
- Compatible with dynamic Octopus energy pricing
- Advanced weather compensation programming
- On/off grid seamless switching
- Separate EPS port for flexible load management
- Free monitoring – For mobile & web portal (PC)
UK base technical support team, always ready to assist
Reliable national RMA service with a 48 hour response time.
12 Year Warranty
Description
- Max. PV array power : N/A
- Max. input voltage : N/A
- MPPT voltage range / rated input voltage : N/A
- Min. input voltage / start voltage : N/A
- No. of independent MPPT trackers / strings per MPPT input : N/A
- Max. input current per MPP tracker : N/A
- Max. short-circuit current per MPP tracker : N/A
- AC voltage range / Nomlnal AC voltage : 230V
- Rated AC grid frequency : 50Hz/ 60Hz
- Rated apparent power : 3600W
- Max. apparent power :
- Rated grid output current (@230V) : 16A
- Max. grid output current :
- Nominal output voltage : 230V
- Nominal output frequency : 50Hz/ 60Hz
- Rated apparent power :
- Max. output apparent power : 3600w
- Peak output apparent power : 4500W | 30s
- Max. output current : 16A
- Max. switch time : 20ms
- Dimensions (W*H*D) (mm) : 550*320*110
- Device weight : 15.6Kg
- Operating temperature range : -25℃~+60℃
- Noise emissions (typical) : <25dB
- Standby consumption : <10
- Degree of protection (as per lEC 60529) : IP65
- Nominal battery voltage : 48V
- Battery voltage range : 40V to 60V
- Max. charging / discharge power : 3600W
- Max. charging current / Max. discharging current : 70A
- Battery type : Lithium-ion
- Rated grid voltage : 230V
- Rated apparent power : 6000W
- Max. input apparent power from grid :
- Rated input curent from grid :
- Max. input current from grid : 26A
- MPPT efficiency :
- Euro efficiency / Max. efficiency : 97.0%/97.3%
- Max. battery to load efficiency : 94.50%
- User interface : LCD & APP
- Communication with BMS : RS485/WiFi/CAN
- Communication with meter :
- Communication with portal :
- Other communication : Wi-Fi
- Communication : LCD/ LED/RS485/ Wi-Fi/ CAN
- Integrated power control / Zero export control :
- Certifications : IEC62109-1 | IEC62040| EN 61000-6-1:2007 | EN 61000-6-3:2007+A1:2011+ AC:2012 | EN 61000-3-2:2014 | EN 61000-3-3:2013 | VDE-AR-N 4105
- Warranty : 12 years
